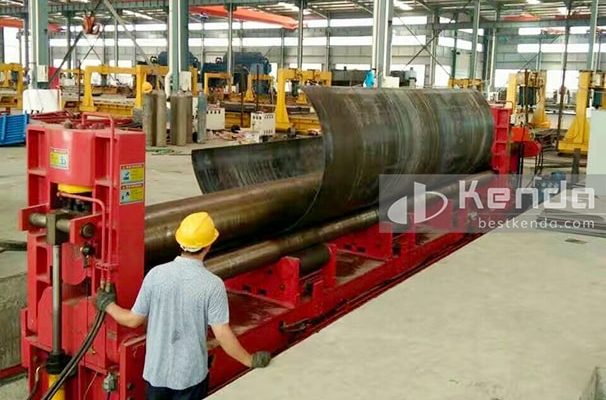

This machine used to coil plate into different sharps such as cylindrical form, conic form and arc, it adopted Japan hydraulic technical.

Top roll can does vertical and level motion, up and down, parallel translation is display. This machine include pre-bending function.

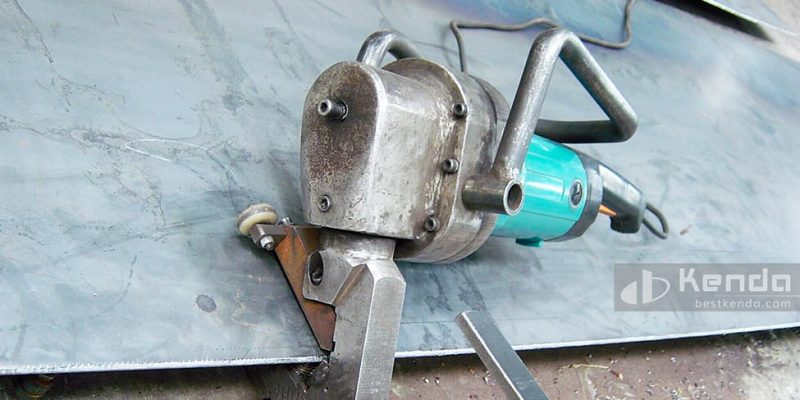

For cutting carbon steel, stainless steel, aluminum and other materials flat linear or non-linear welding groove，Or so realize the single-side welding double-side molding.

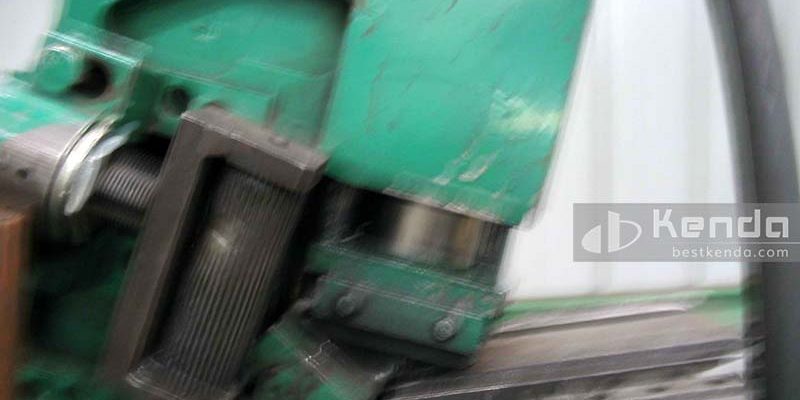

Suitable for a smooth transition at the arc of the docking cone tank.

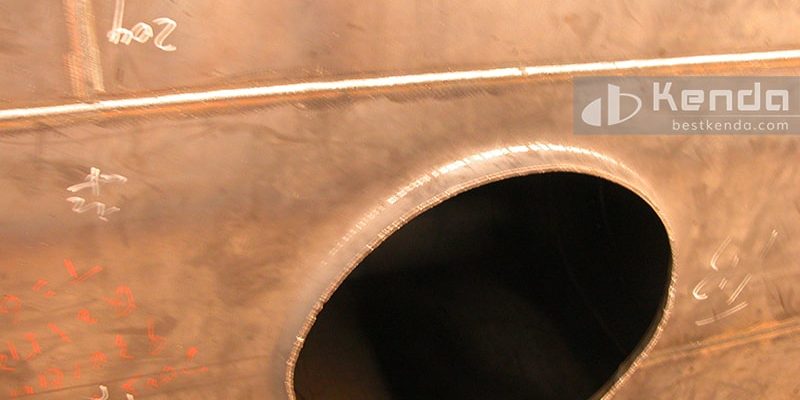

Applicable to tank manholes and pipe outlet flanging, reducing tank welding deformation.

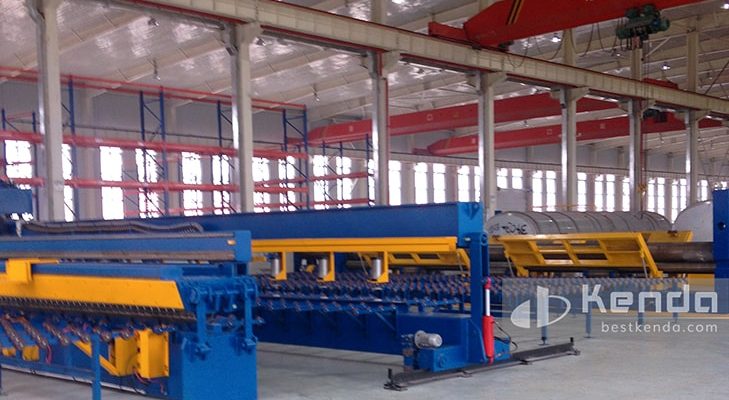

Puzzle for food tanker and tank closure weld seam compaction polishing. This equipment will weld Roller Compacted device and polishing apparatus is mounted on a track with walking, while Roller Compacted and polishing, Roller Compacted powered by hydraulic trolley by servo motor, hydraulic cylinder ends open, easy to tank after rolling set into the body, to facilitate tank closure weld Roller Compacted and polishing, polishing machine with dust removal system, dust generated during the absorption finish.

Equipment by the hydraulic system, the press, the ends open device, rolling polishing system, dust removal system, electrical control system.

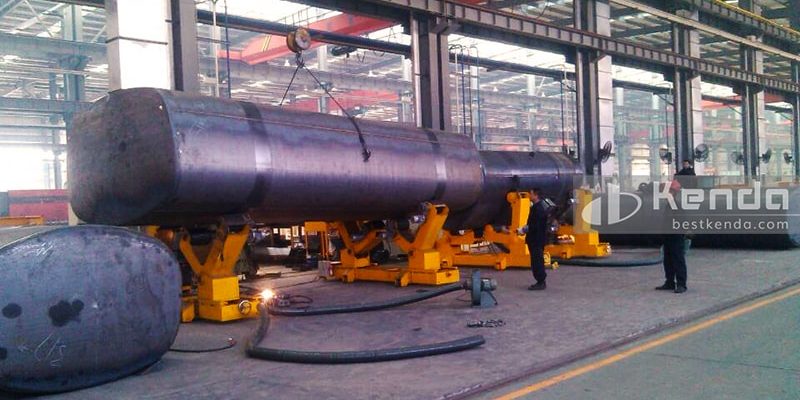

Rotary displacement for the round, conical Special – shaped tank, tank without clamping directly on positioner can be used to achieve the tank ring longitudinal seam welding, welding internal partition plate and external welding to ensure the welding quality and increase productivity. wheel positioner moves on the track, conducive to the production line layout.

Equipment by two proactive positioner, electrical control box, remote control and other components.

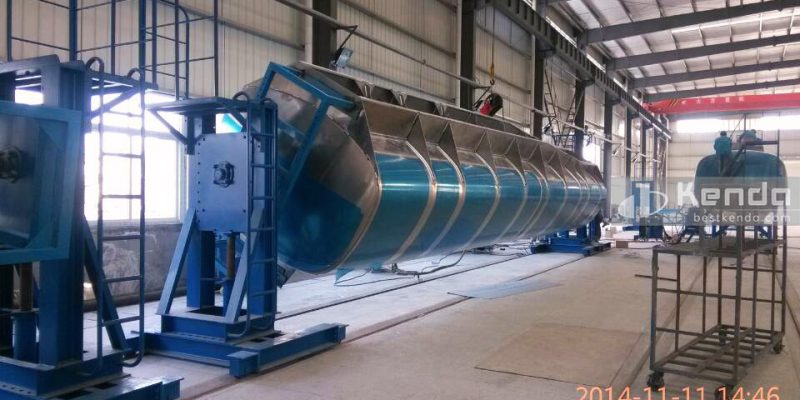

The mechanism for clamping the tank body so that the tank body is revolved and shifted implements the girth automatic welding of the tank body (or used in the rounded section tanker), accessory installation, internal alternate bay welding and external welding so as to ensure the welding quality and to improve the production efficiency. The positioner can be moved on the track, which is beneficial to the production line layout.

The equipment comprises a drive positioner, a driven positioner, an electric control box, a remote controller and so on and can regulate the speed through a transducer.

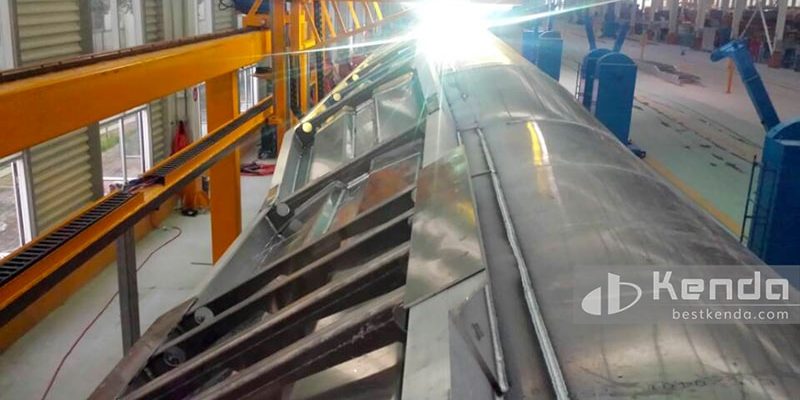

For carbon steel, stainless steel, aluminum tanker longitudinal seam and plate cylinder, automatic frame longitudinal seam weld. Welding guns or a single gun can be used cantilever structure or gantry structure, weld appearance, reliable quality.

Equipment are walking track, lifting console, welding power, electrical control systems, tanks and other components positioner.

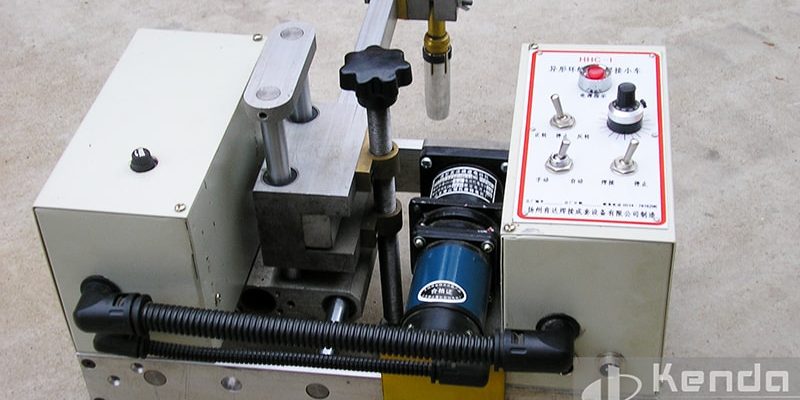

The equipment applies to automatic welding of girth covers of carbon steel, stainless steel and aluminum alloy tankers (circular section and special-shaped section). Carbon steel tank will travel with a magnetic trolley that will be attached to the tank directly through the magnetic power. The automatic welding operation is easy and will not be limited by space and station.

The equipment consists of a travelling magnetic trailer, a traveler gantry and a positioner.

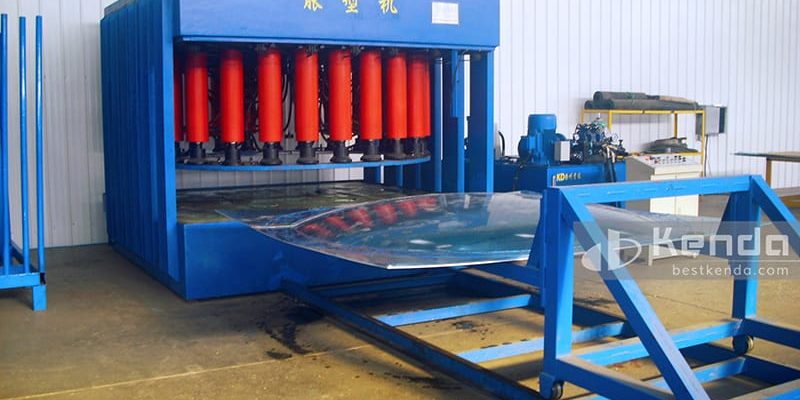

The equipment is used for shaping tank truck head. The flat is tightly pressed on the platform by utilizing a hydraulic oil cylinder and a blank pressing die; the flat becomes butterfly-shaped through adding water to the same by a high-pressure pump; the hydraulic oil cylinder can be fast moved in the track in the production process in order to adapt the heads having the different sections. The equipment employs an accumulator and a pressure relay to jointly pressurize in order to reduce the energy consumption and can automatically unload after reaching the set system pressure and automatically build the pressure when the pressure is less than the set system pressure; the equipment can save 30% of energy in comparison of the normal hydraulic system. (The product has gained the National Invention Patent: a plate pressing mechanism of plate shaping machine ZL 2007 2 0130977.0; a novel plate shaping machine ZL 2007 2 0130975.1; and a pressing ring of plate shaping machine ZL2007 2 0130976.6).

The equipment comprises a high-low pressure hydraulic system, a water overflowing pressure system, a pressing machine, a workpiece lifting device, a workpiece in-out mobile car, an electric control system, etc.
